CAN gateway timing analysis

Results for: Host kernel 2.6.36.2-00015-g4f1bc4e, GW kernel 2.6.36.2-00015-g4f1bc4e, Traffic flood, Load cpu, Test filterlenshort

Other results

Host kernel 2.6.36.2-00015-g4f1bc4e
GW kernel 2.6.33.7-00007-g9c0ff90 2.6.33.7-rt29-00004-g92487e4 2.6.36.2-00015-g4f1bc4e 3.0.4-00007-g1c8c373 3.0.4-rt14-00008-gb2052fd 3.0.7-rt20-00008-g0c18035 3.4.33-rt47-00004-gc58c9ae rtems4.10-midam
Traffic 50% flood one message at a time
Load cpu eth none
Test filter filter-sff filter-time filterlen filterlenshort mod nop nop-canalyzer nop-highprio nop-highprio-time nop-time pc user user-time vcan vcans
Plot source

Statistics

len-0-stat.txt

cmdline=...
duration=1.292212
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-100-stat.txt

cmdline=...
duration=1.294884
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-120-stat.txt

cmdline=...
duration=1.291106
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-140-stat.txt

cmdline=...
duration=1.280659
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-160-stat.txt

cmdline=...
duration=1.273775
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-180-stat.txt

cmdline=...
duration=1.273365
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-20-stat.txt

cmdline=...
duration=1.296655
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-200-stat.txt

cmdline=...
duration=1.286034
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-220-stat.txt

cmdline=...
duration=1.279143
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-240-stat.txt

cmdline=...
duration=1.226479
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-260-stat.txt

cmdline=...
duration=1.219807
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-280-stat.txt

cmdline=...
duration=1.211459
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-300-stat.txt

cmdline=...
duration=2.101298
sent=10000
overrun=0
enobufs=0
lost=14
timeouts=0
invalid_frame=0

len-40-stat.txt

cmdline=...
duration=1.304498
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-60-stat.txt

cmdline=...
duration=1.301754
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-80-stat.txt

cmdline=...
duration=1.304689
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

Additional graphs

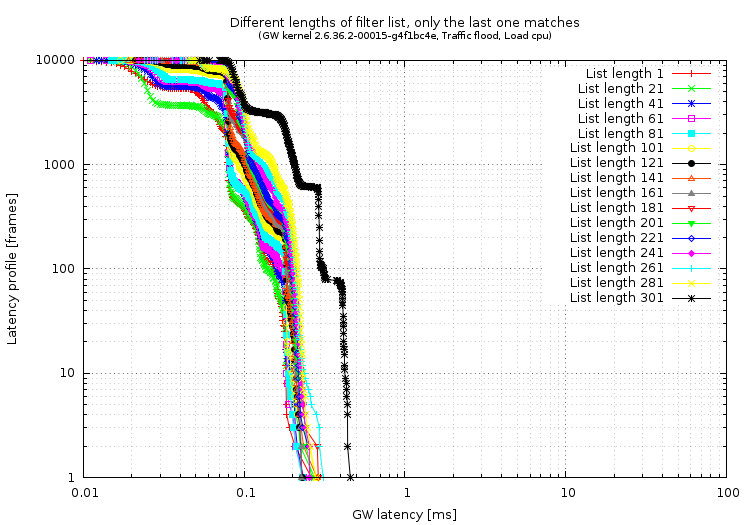

log

Plot source

Raw data
Script source
