CAN gateway timing analysis

Results for: Host kernel 2.6.36.2-00015-g4f1bc4e, GW kernel 2.6.33.7-00007-g9c0ff90, Traffic flood, Load cpu, Test filterlen

Other results

Host kernel 2.6.36.2-00015-g4f1bc4e
GW kernel 2.6.33.7-00007-g9c0ff90 2.6.33.7-rt29-00004-g92487e4 2.6.36.2-00015-g4f1bc4e 3.0.4-00007-g1c8c373 3.0.4-rt14-00008-gb2052fd 3.0.7-rt20-00008-g0c18035 3.4.33-rt47-00004-gc58c9ae rtems4.10-midam
Traffic 50% flood one message at a time
Load cpu eth none
Test filter filter-sff filter-time filterlen filterlenshort mod nop nop-canalyzer nop-highprio nop-highprio-time nop-time pc user user-time vcan vcans

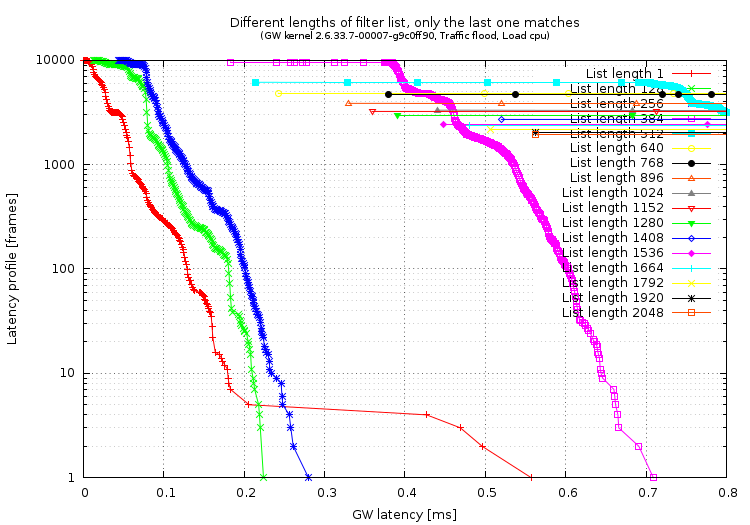

Plot source

Statistics

len-0-stat.txt

cmdline=...
duration=2.278445
sent=10000
overrun=0
enobufs=0
lost=2
timeouts=0
invalid_frame=0

len-1023-stat.txt

cmdline=...
duration=2.038870
sent=10000
overrun=0
enobufs=0
lost=6669
timeouts=0
invalid_frame=0

len-1151-stat.txt

cmdline=...
duration=2.105671
sent=10000
overrun=0
enobufs=0
lost=6760
timeouts=0
invalid_frame=0

len-127-stat.txt

cmdline=...
duration=1.294678
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-1279-stat.txt

cmdline=...
duration=2.092307
sent=10000
overrun=0
enobufs=0
lost=7055
timeouts=0
invalid_frame=0

len-1407-stat.txt

cmdline=...
duration=2.090734
sent=10000
overrun=0
enobufs=0
lost=7284
timeouts=0
invalid_frame=0

len-1535-stat.txt

cmdline=...
duration=2.048894
sent=10000
overrun=0
enobufs=0
lost=7564
timeouts=0
invalid_frame=0

len-1663-stat.txt

cmdline=...
duration=2.095243
sent=10000
overrun=0
enobufs=0
lost=7626
timeouts=0
invalid_frame=0

len-1791-stat.txt

cmdline=...
duration=2.060961
sent=10000
overrun=0
enobufs=0
lost=7833
timeouts=0
invalid_frame=0

len-1919-stat.txt

cmdline=...
duration=2.062778
sent=10000
overrun=0
enobufs=0
lost=7958
timeouts=0
invalid_frame=0

len-2047-stat.txt

cmdline=...
duration=2.071509
sent=10000
overrun=0
enobufs=0
lost=8053
timeouts=0
invalid_frame=0

len-255-stat.txt

cmdline=...
duration=1.190709
sent=10000
overrun=0
enobufs=0
lost=0
timeouts=0
invalid_frame=0

len-383-stat.txt

cmdline=...
duration=2.260386
sent=10000
overrun=0
enobufs=0
lost=371
timeouts=0
invalid_frame=0

len-511-stat.txt

cmdline=...
duration=2.177728
sent=10000
overrun=0
enobufs=0
lost=3835
timeouts=0
invalid_frame=0

len-639-stat.txt

cmdline=...
duration=2.077534
sent=10000
overrun=0
enobufs=0
lost=5155
timeouts=0
invalid_frame=0

len-767-stat.txt

cmdline=...
duration=2.175849
sent=10000
overrun=0
enobufs=0
lost=5335
timeouts=0
invalid_frame=0

len-895-stat.txt

cmdline=...
duration=2.088146
sent=10000
overrun=0
enobufs=0
lost=6130
timeouts=0
invalid_frame=0

Additional graphs

log

Plot source

Raw data
Script source
